Electric Heating Rubber Mat Making Machine Vulcanizing Press Other Name Hydraulic Press

Name: Electric Heating Rubber Mat Making Machine Vulcanizing Press Other Name Hydraulic Press
Brand: HUICAI
Price: 20 USD

Quality Electric Heating Rubber Mat Making Machine Vulcanizing Press Other Name Hydraulic Press wholesale

Place of Origin : Shandong, China

Condition : New

Video outgoing-inspection : Provided

Machinery Test Report : Provided

Warranty of core components : 1 Year

Core Components : PLC, Engine, Bearing, Gearbox, Motor, Pressure vessel, Gear, Pump

Brand Name : HUICAI

Machine Type : Plate Vulcanizing Press

Voltage : 380V/220V

Dimension(L*W*H) : 1500*1500*1

Weight : 17000

Warranty : 1 Year

Key Selling Points : Long Service Life

Showroom Location : India, Sri Lanka

Applicable Industries : Manufacturing Plant

Nominal molding power : 4.00-5.00MN

Plate clearance : 250-500mm

Piston stroke : 500mm

color : Customer's Request

Other name : Hydraulic press

Control System : PLC

Quality : Top High

Heating mode : Oil,steam,electric

Operational way : automatic

Feature : High Precision

Packaging Details : wooden casesAccording to the needs of clients

Port : Qingdao

Supply Ability : 100 Set/Sets per Month Solid tire press machine

Price : $20,000.00/sets 1-1 sets

MOQ : 1

Contact Now

Product Description

Features

1. Compact structure, beautiful modelling and strong clamp force .
2. Per working position can be heated to 180 degree celsius(adjustable),the lower template can control temperature in room temperature condition to form an effective temperature difference.
3. Its unique double temperature station structure and high pressure characteristics are used in all kinds of reflective materials products such as trademark , etc
4. Pass CE and ISO9001 Standard.

*Technical Parameter*
Type	XLB-D(Y)100010001	XLB-D(Y)120012001	XLB-D(Y)150015001
Nominal molding power	1.60-2.00MN	3.15MN	4.00-5.00MN
Working layer number	1	1	1
Piston stroke	250-500mm	250-500mm	250-500mm
Main motor power	3.0kW	3.0kW	3.0kW
Plate clearance	125-500mm	125-500mm	125-500mm
Heating method	Steam,ecectricity	Steam,ecectricity	Steam,ecectricity
Configuration	Frame	Frame	Frame
Electric pipr heating power	12kW	15.6kW	27kW

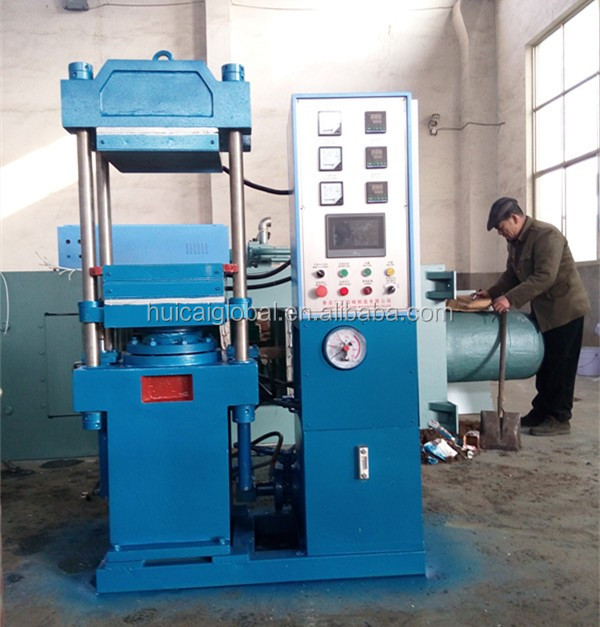

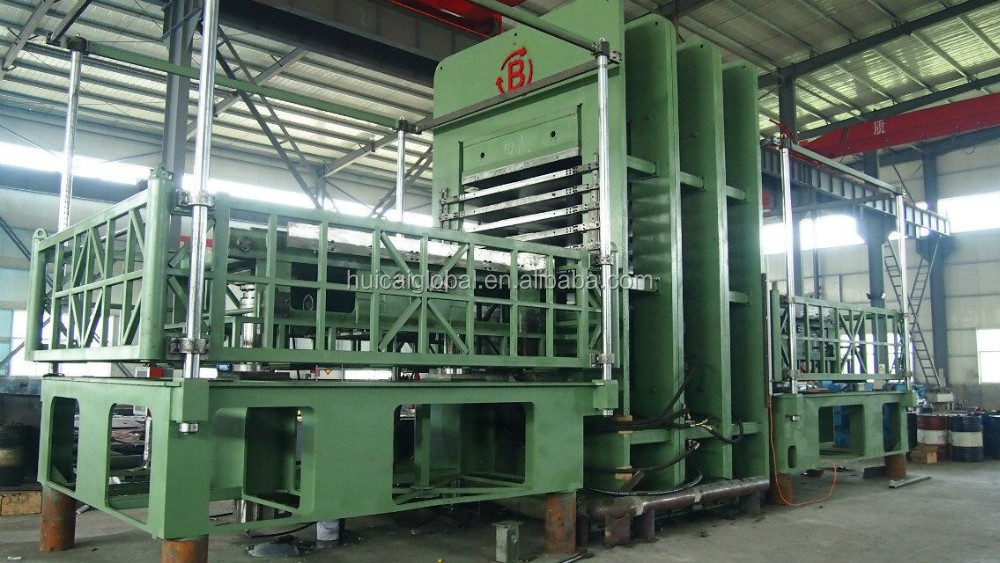

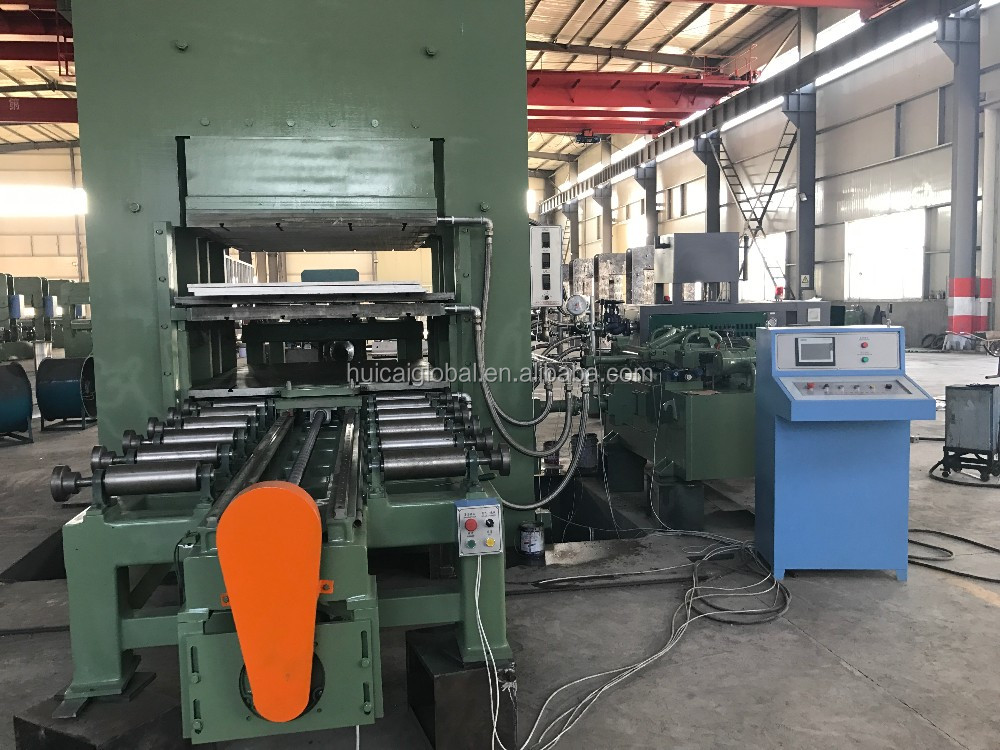

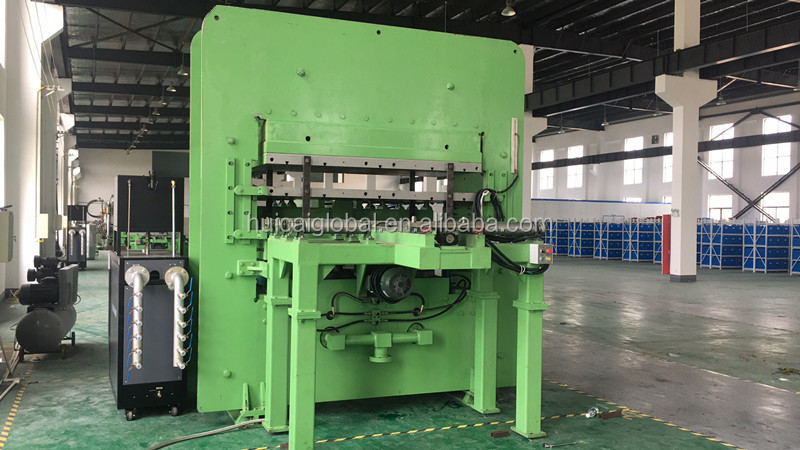

Machine Show

HYDRAULIC PRESS RUBBER MAT PRESS MACHINE

Electric Heating Rubber Mat Making Machine Vulcanizing Press Other Name Hydraulic Press

We can according to all your requirements , design your suitable machine

♥ If you are interested in our products, please contact me ♥

MAIN FRAME:

Using high-quality carbon steel plate Q235, welding forming structure. After eliminating stress, into the whole process.

OIL CYLINDER:

The material is QT500 or ZG270-500 or 45# steel .Use QT500 quality castings, can withstand 20MPa or more.

PUSH-PULL MOLD DEVICE:

This type can be divided into link chain,steel wire and air-operated three types.

GUIDE RAIL:

A groove or Ridge, made of metal or other materials, that can withstand, fix, guide and reduce friction in a moving device.

AUXILIARY CYLINDER:

The auxiliary cylinder can make the speed up,and can be high working efficiecy.

HYDRAULIC UNIT:

Hydraulic system is equipped with low-pressure pump and high-pressure pump. Used by the US company 116/237. The system has safety pressure limiting devices.

Company Informations

(1) Qingdao HUICAI Machinery Manufacturing Co., Ltd. was founded in 1996;
(2) 100% of the factory, to meet all your requirements;
(3) CE, ISO9001 certification;
(4) a one-year warranty and long-term technical support;
(5)Our company owned 2 process workershop,2 assembly workershop and total 40,000 squre meters.
(6)Our registered fund is USD 30,0000.00.
