Long Service Life Water Stop Belt Vulcanizing Press for Rubber Slippers Making Machine

Name: Long Service Life Water Stop Belt Vulcanizing Press for Rubber Slippers Making Machine
Brand: Huicai
Price: 40 USD

Quality Long Service Life Water Stop Belt Vulcanizing Press for Rubber Slippers Making Machine wholesale

Place of Origin : Shandong, China

Condition : New

Video outgoing-inspection : Provided

Machinery Test Report : Provided

Warranty of core components : 1 Year

Core Components : PLC, Engine, Bearing, Gearbox, Motor, Pressure vessel, Gear, Pump

Brand Name : Huicai

Machine Type : Plate Vulcanizing Press

Voltage : 380v/220v

Weight : 3500

Warranty : 1 Year

Key Selling Points : Long Service Life

Showroom Location : United States, Philippines, Brazil, Peru, Pakistan, India, Mexico, South Korea, Bangladesh

Applicable Industries : Manufacturing Plant

type : rubber slippers making machine

color : blue, green or as the customer's request

certificate : ISO9001

Total pressure(MN) : 2

motor power(kw) : 5.5

overall size(mm) : 1800*1800*1800

weight(kg) : 3500

Maximum width(mm) : 600*550

miximum stroke(mm) : 350

Operational way : Autoamtic

Packaging Details : The package is suitable to long distance transportation, and can protect the machine perfectly.

Port : Qingdao port

Supply Ability : 120 Set/Sets per Month

Price : $40,000.00/sets 1-1 sets

MOQ : 1

Contact Now

型号Mode	XLB-500*500/100MN	XLB-600*550/2.00MN	XLB-800*640/2.5MN	XLB-640*700/3.5MN
最大宽度 Maximum width	500*500(mm)	600*550(mm)	800*640(mm)	640*700(mm)
最大行程 Maximum stroke	250(mm)	350(mm)	400(mm)	400(mm)
公称合模力 Total Pressure	1.00(MN)	2.00(MN)	2.50 (MN)	3.50(MN)
电机功率 Motor power	3(KW)	5.5(KW)	5.5(KW)	7.5(KW)
外形尺寸 Overall size	155015501650(mm)	180018001800(mm)	220011002500(mm)	190019002000(mm)
重量 Weight	约2400(kg)	约3500(kg)	约5800(kg)	约7600(kg)

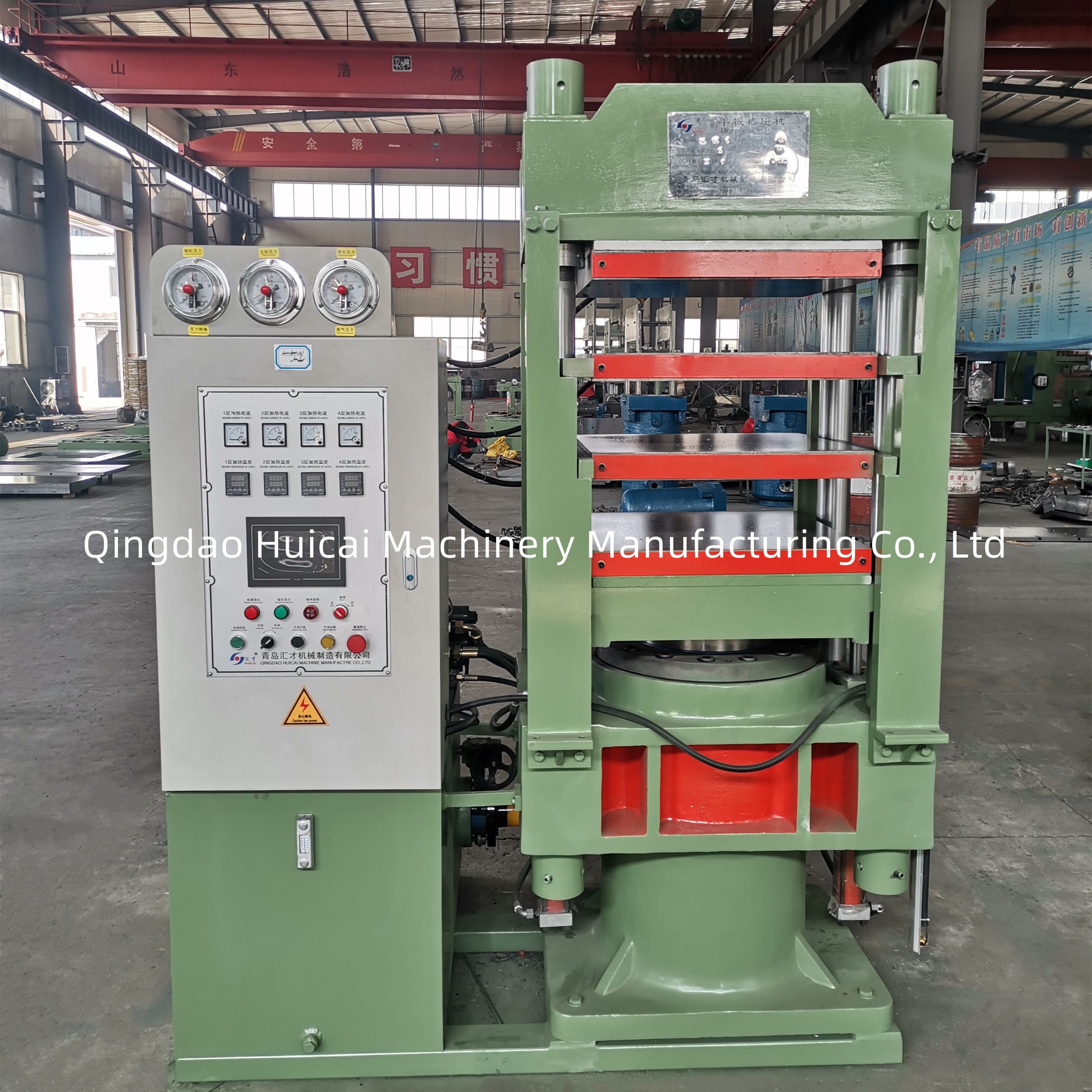

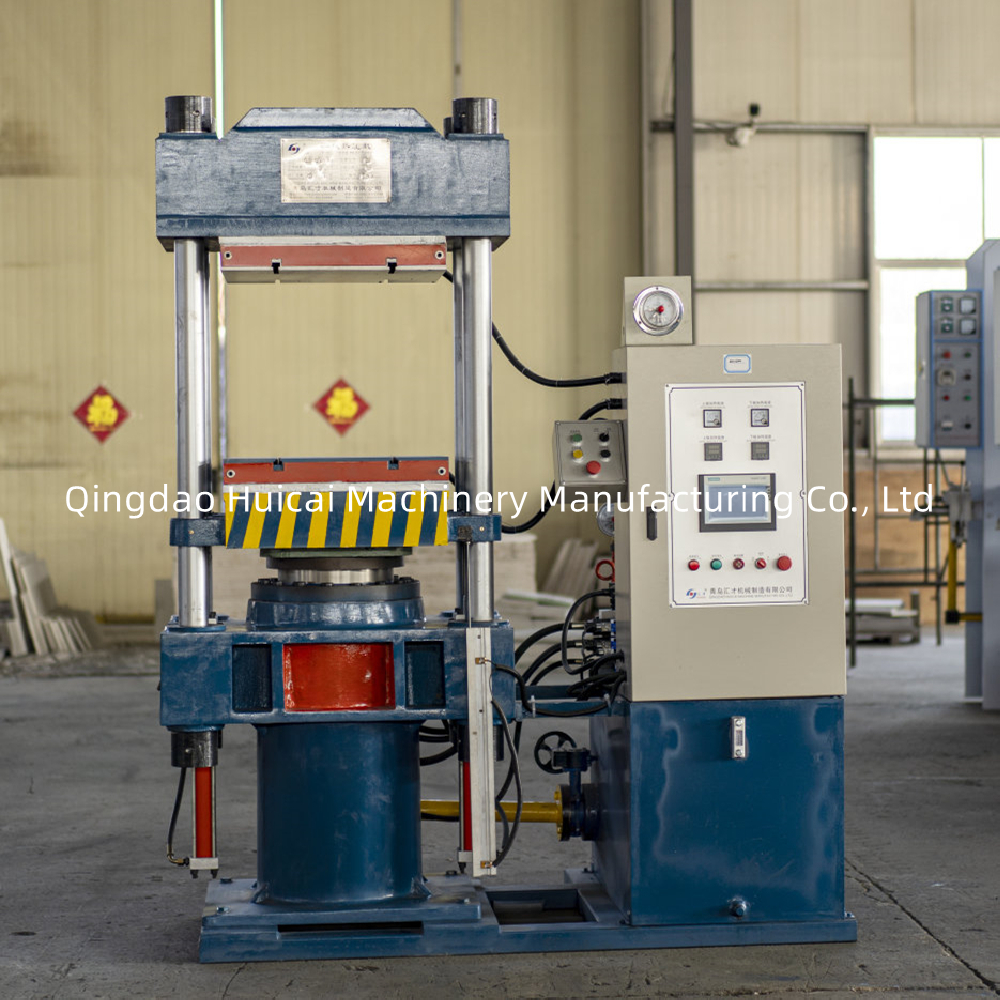

Machine Show

Long Service Life Water Stop Belt Vulcanizing Press for Rubber Slippers Making Machine

Column

Using high-quality carbon steel Q235.

Oil Cylinder

The material is QT500 or ZG270-500 or 45# steel .Use QT500 quality castings, can withstand 20MPa or more.

Push and Pull Device

Improve work efficiency, optional

Auxiliary Cylinder

The auxiliary cylinder can make the speed up,and can be high working efficiency.

Hydraulic Unit

Hydraulic system is equipped with low-pressure pump and high-pressure pump. Used by the US company 116/237. The system has safety pressure limiting devices.

Motor

The brand is kaiyuan or Siemens, which is famous and outstanding in motor making.

Hot Plate

Use 45#steel which after double scale rolling and normalizing and processing, every platen has 2 heating zones, each heating zone using a temperature measurement points.

Insulation Board

Insulation materials can be divided into resin,carbon fiber,Ultra-light calcium silicate and so on.

Double Sealings

Seal structure uses imported dual channel o-ring, and increase a dust-proof to ensure that long-term and no leaking oil.

Piston

The material is alloy chilled cast iron, which ensures long-term use.

PLC

The brand is Siemens,Taida or Mitsubishi.Electronic control system is by PLC programmable controller, HMI, control cabinets and other components.

Electricity Box

The main parts from zhengtai brand,and we can offer Schneider if you need.

Certifications

Our Service

Why choose our company?

Qingdao Huicai Machinery Manufacturing Co., Ltd. is an export-oriented enterprise based on Qingdao Jiaonan Huicai Rubber Machinery Factory. Founded in October 1996, we have over ten years' history in manufacturing rubber machinery. We can provide all technical support, best after-sell service for all you require.

1) AAA grade credit enterprise and Ce and ISO 9001

2) With 14 years experience in manufacturing rubber machines has become one of the biggest company in China.

3) Exported to more than 20 contries with good quality. Example: The good year company in Chile.

Management Concept: Survive by Quality, Develop by Credit, Innovate by Technology, Improve by precision.
Times Concept: People Oriented, Scientific Development, Advance with Times, Innovative creation.
Work Concept: Hardworking Practical, Conscientious and Meticulous.

Packing & Delivery

Customer visting and acceptance:

Long Service Life Water Stop Belt Vulcanizing Press for Rubber Slippers Making Machine Images
